Barcode Check Annotation

Defined in package com.scandit.datacapture.barcode.check.ui

BarcodeCheckAnnotationTrigger

Added in version 7.1.0

The conditions that trigger an annotation to be displayed.

HIGHLIGHT_TAP

Added in version 7.1.0

The annotation is shown when the user taps on the highlight.

HIGHLIGHT_TAP_AND_BARCODE_SCAN

Added in version 7.1.0

The annotation is shown immediately when the barcode is scanned, and can be hidden and shown again by tapping on the highlight.

BarcodeCheckAnnotation

interface BarcodeCheckAnnotation

Added in version 7.1.0

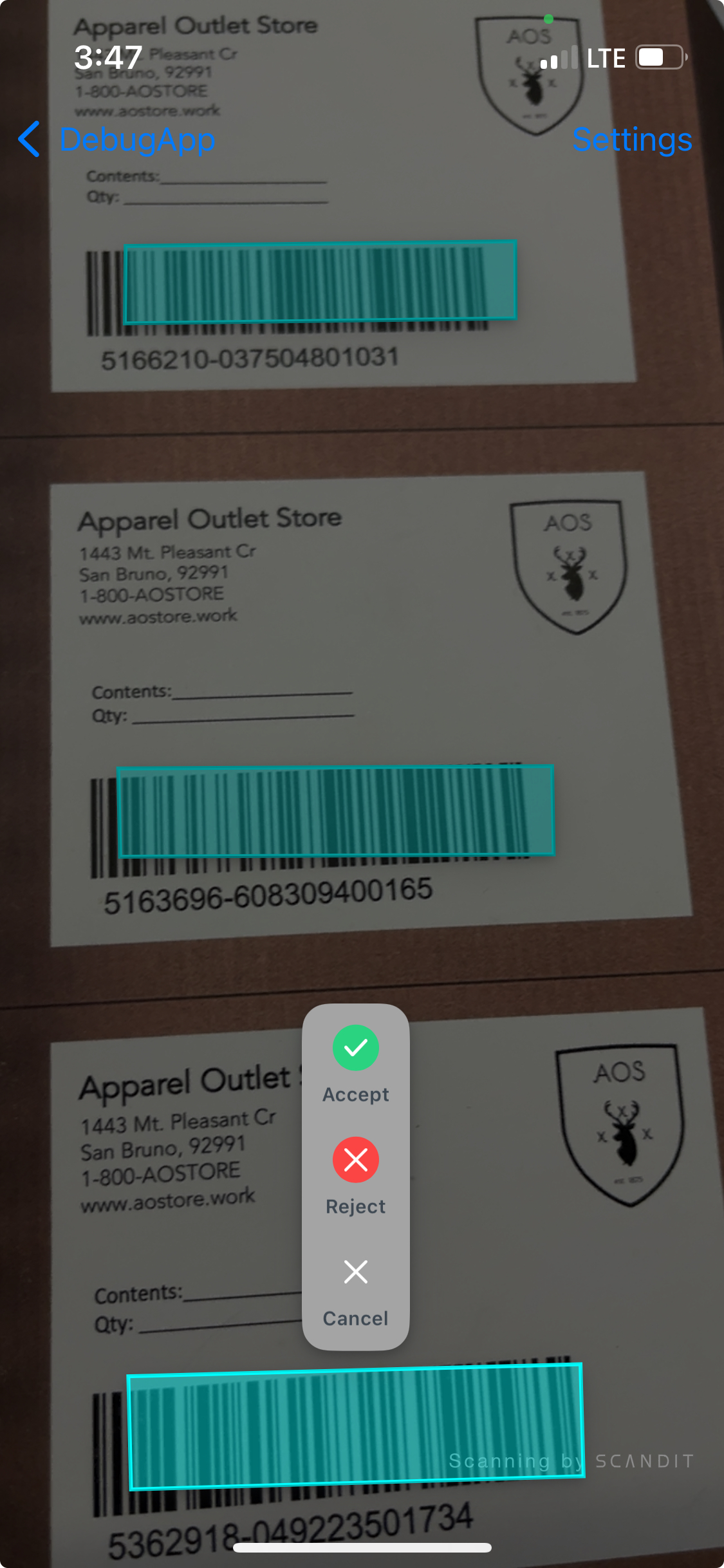

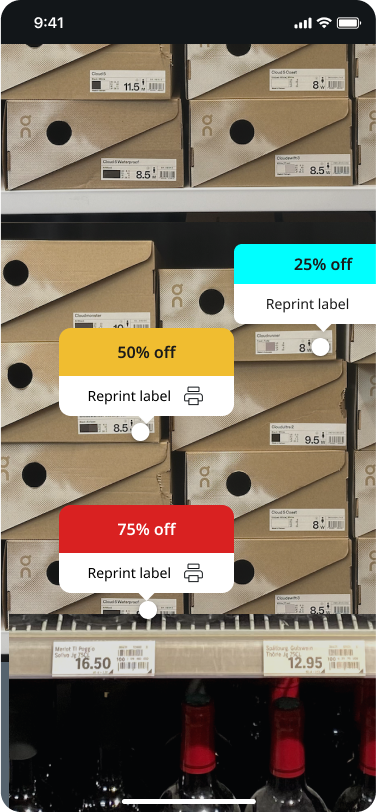

Common interface for Barcode Check annotations. Annotations are used to display additional information and/or trigger actions. They are displayed outside of the area of a barcode, and attach to the scanned barcode. They are available in different types and have configurable styles. Currently, three types of highlights are supported: BarcodeCheckInfoAnnotation, BarcodeCheckPopoverAnnotation and BarcodeCheckStatusIconAnnotation.

annotationTrigger

BarcodeCheckAnnotationTrigger getAnnotationTrigger()
void setAnnotationTrigger(BarcodeCheckAnnotationTrigger value)

Added in version 7.1.0

The trigger that causes the annotation to be presented.
