Barcode AR Annotation
Defined in library scandit_datacapture_barcode_ar_ui
- BarcodeArAnnotationTrigger
Added in version 7.1.0
The conditions that trigger an annotation to be displayed.
- highlightTap
Added in version 7.1.0
The annotation is shown when the user taps on the highlight.
- highlightTapAndBarcodeScan
Added in version 7.1.0
The annotation is shown immediately when the barcode is scanned, and can be hidden and shown again by tapping on the highlight.
- BarcodeArAnnotation
abstract class BarcodeArAnnotationAdded in version 7.1.0

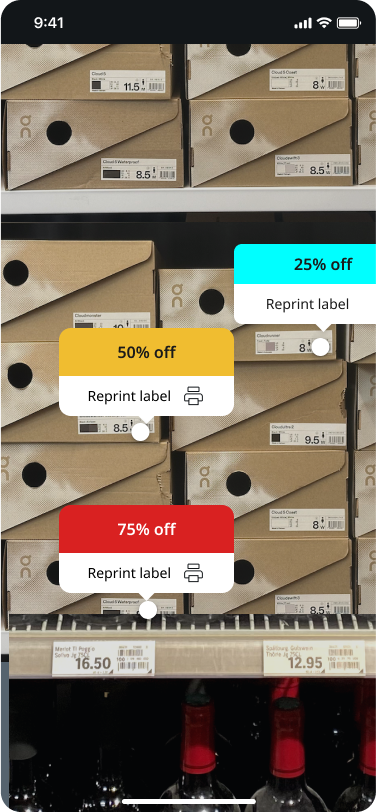

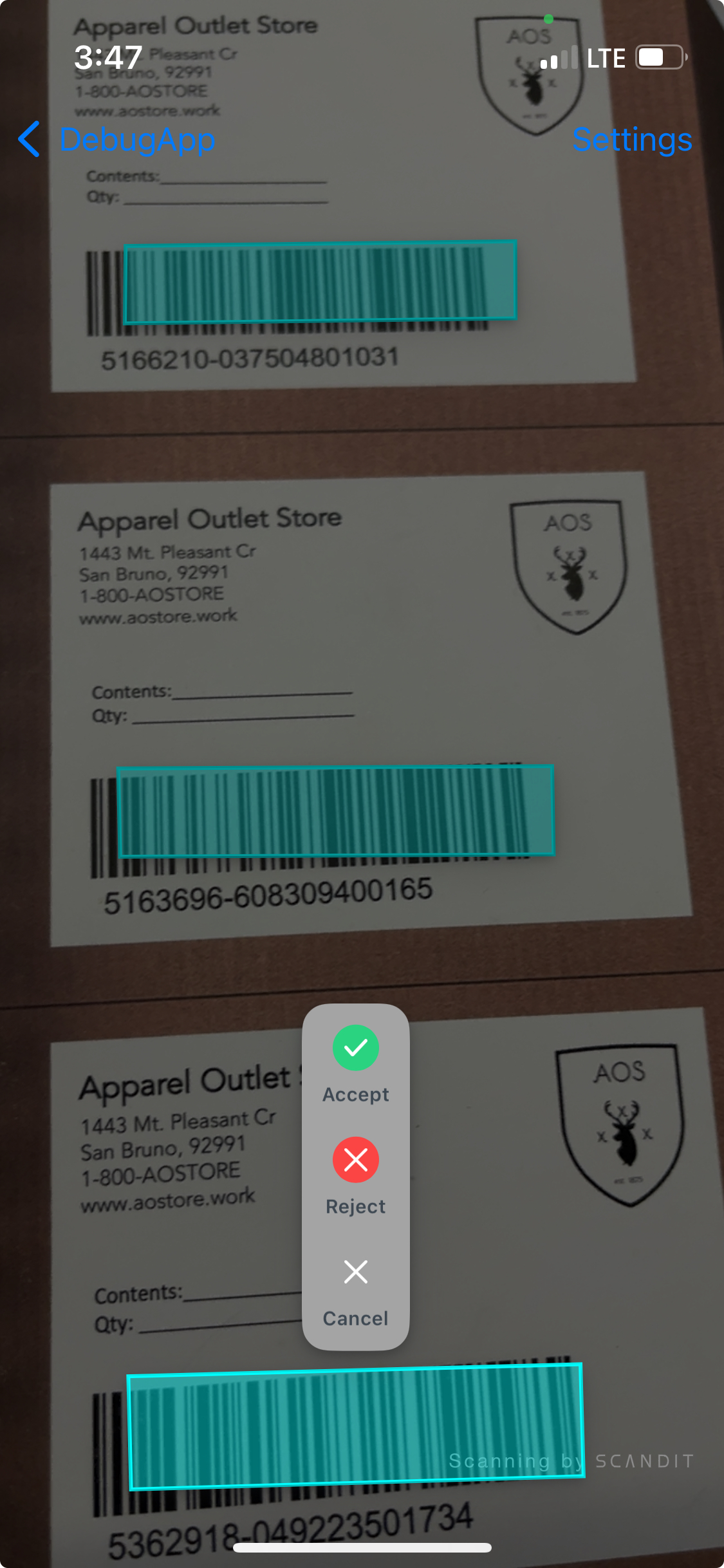

Common interface for Barcode Ar annotations. Annotations are used to display additional information and/or trigger actions. They are displayed outside of the area of a barcode, and attach to the scanned barcode. They are available in different types and have configurable styles. Currently, three types of highlights are supported: BarcodeArInfoAnnotation, BarcodeArPopoverAnnotation and BarcodeArStatusIconAnnotation.
You can also create your own custom annotation by extending BarcodeArAnnotation. For instance, the following code creates a custom annotation that displays a custom image on top of the barcode:
- annotationTrigger
BarcodeArAnnotationTrigger annotationTrigger
Added in version 7.1.0
The trigger that causes the annotation to be presented.
