Barcode Check Annotation

Defined in framework ScanditBarcodeCapture

SDCBarcodeCheckAnnotationTrigger

Added in version 7.1.0

The conditions that trigger an annotation to be displayed.

SDCBarcodeCheckAnnotationTriggerHighlightTap

Added in version 7.1.0

The annotation is shown when the user taps on the highlight.

SDCBarcodeCheckAnnotationTriggerHighlightTapAndBarcodeScan

Added in version 7.1.0

The annotation is shown immediately when the barcode is scanned, and can be hidden and shown again by tapping on the highlight.

SDCBarcodeCheckAnnotation
@protocol SDCBarcodeCheckAnnotation <NSObject>

Added in version 7.1.0

Common interface for Barcode Check annotations. Annotations are used to display additional information and/or trigger actions. They are displayed outside of the area of a barcode, and attach to the scanned barcode. They are available in different types and have configurable styles. Currently, three types of highlights are supported: SDCBarcodeCheckInfoAnnotation, SDCBarcodeCheckPopoverAnnotation and SDCBarcodeCheckStatusIconAnnotation.

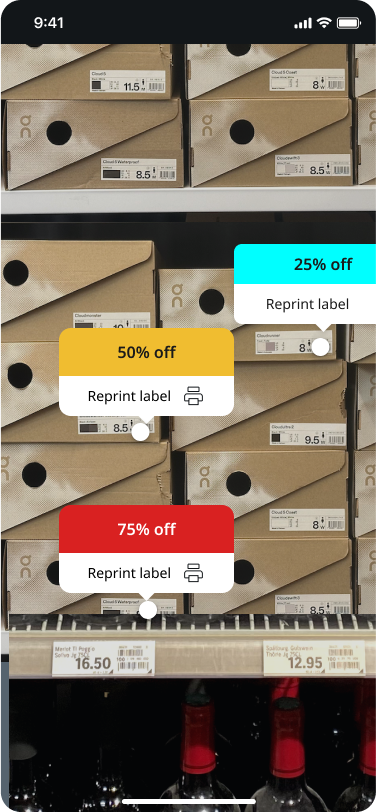

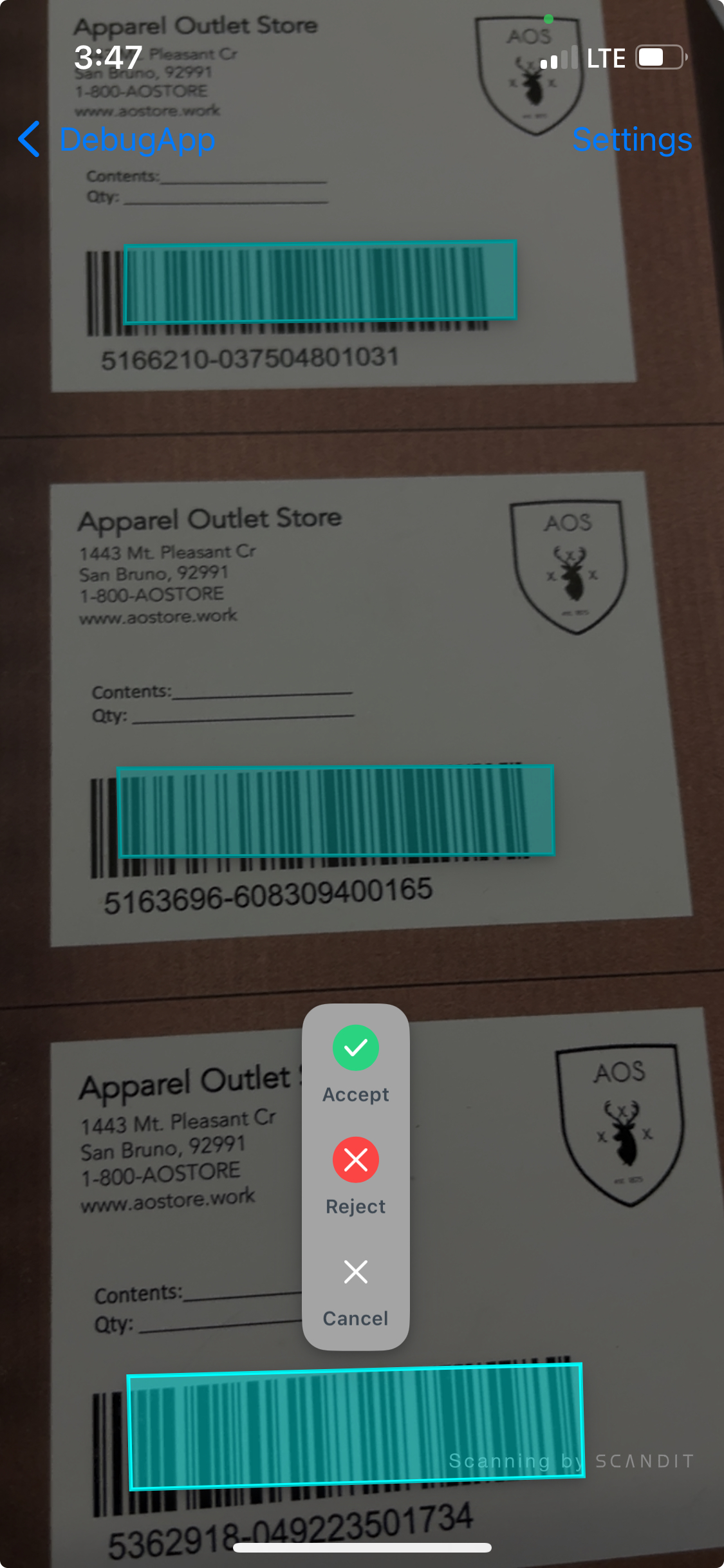

Info annotation Popover annotation Status icon annotation
annotationTrigger
@property (nonatomic, assign) SDCBarcodeCheckAnnotationTrigger annotationTrigger

Added in version 7.1.0

The trigger that causes the annotation to be presented.
